As professionals in the end-forming and tube processing machinery manufacturing industry, we understand the constant push for higher precision, better material utilization, and stronger finished components. Internal high pressure forming (often abbreviated as internal-high-pressure-forming) represents a powerful advancement that addresses many limitations of conventional methods.
An internal high pressure forming machine uses hydraulic fluid pressure applied inside a tube or pipe to expand and shape it into complex geometries within a die. This process excels at producing lightweight, high-strength parts from a single piece of metal. GSIE, a high-tech enterprise with nearly 20 years of integrated R&D, production, sales, and technical service experience, has refined this technology into reliable, automated solutions.
Key benefits include:
- Seamless construction that eliminates weak weld points
- Improved structural stiffness
- Reduced part weight while maintaining strength
- Lower assembly costs through parts consolidation
These advantages make internal-high-pressure-forming essential for industries requiring complex, high-performance components.
Internal High Pressure Forming vs Traditional Bending - Modern Metal & PVC Solutions

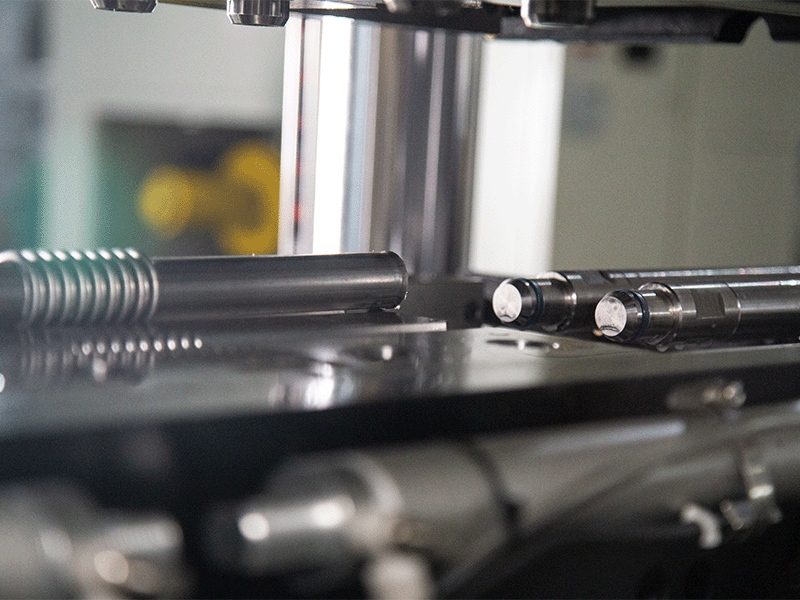

Servo Bellows Water Expansion Machine
When comparing processes, the choice between internal high pressure forming and traditional bending becomes clear for demanding applications.
1. The Technology Choice: Traditional mechanical curving relies on external force, which can lead to thinning, wrinkling, or cracking in complex areas. In contrast, modern internal-high-pressure-forming uses controlled hydraulic pressure for uniform material flow.
2. A New Standard for Precision: With hydraulic fluid, the process achieves intricate geometries that traditional methods simply cannot reach without multiple steps or joints. This is particularly valuable for metal tubes where maintaining consistent wall thickness is critical.
3. GSIE Intelligent Approach: GSIE moves beyond standalone machinery toward all-electric and robotic-integrated smart manufacturing. Our solutions combine internal high pressure forming with complementary technologies like CNC controls for flexible, efficient production lines.
Integrating a Smart Hydraulic Machine into Robotic Automated Lines
Modern hydraulic machines no longer operate in isolation. They function as coordinated cells within robotic automated flexible production lines.
- Beyond Standalone Units: Integration creates efficient, synchronized workflows.
- Human-Robot Collaboration: Solutions like our Single-Robot Tube Bender, highlighted at major exhibitions, represent the future of factory efficiency.
Specialized Applications: From EV Frames to Aviation Equipment
- Automotive & EV Evolution: The demand for lightweight, high-strength parts drives the use of internal-high-pressure-forming for EV frames and liquid cooling system piping. GSIE equipment supports these needs with precision and reliability.
- Medical Devices & Aviation: In high-stakes sectors, consistent wall thickness is imperative. Our technology meets strict requirements for medical-grade tubing and aviation pipe end forming.
Why GSIE Equipment Succeeds Where Traditional Fabrication Falls Short?
GSIE equipment is specifically designed for applications where traditional fabrication falls short, particularly when complex shapes are required from a single piece of metal.
- Complexity from a Single Piece: Our machines form seamless components, eliminating the need for welded joints that can introduce weak points and require additional quality checks.
- Parts Consolidation: Forming one integrated part reduces sub-assembly costs and increases overall structural stiffness, delivering stronger, lighter results ideal for high-performance uses.
This approach streamlines your manufacturing workflow while improving product quality.
The Versatile Role of a Reliable Hydraulic Tube Bender
Even with advanced forming technologies, a high-quality hydraulic tube bender remains foundational.
- Foundational Forming: It handles standard requirements in HVAC, furniture, and automotive piping with repeatable accuracy.
- Stability for Mass Production: GSIE’s hydraulic bending machines provide the consistent performance needed for high-volume sectors, ensuring every bend meets tight specifications.
Our hydraulic tube bender and hydraulic bending machine options integrate seamlessly with other processes for complete tube processing solutions.
Selecting the Ideal Hydraulic Bending Machine for Industry 4.0
Precision Control: Older manual systems lack the accuracy of today’s CNC-integrated technology. GSIE’s hydraulic bending machines feature visual programming and high-speed stability for reliable results.
Green Manufacturing Trends: Advanced control systems help reduce energy consumption, aligning with modern efficiency goals.
Sourcing a High-Performance Hydraulic Bending Machine in China
Finding a reliable hydraulic bending machine in China from an experienced manufacturer like GSIE gives you access to proven technology. We serve global leaders including Tesla, Denso, and Midea through a robust supply chain.
With nearly 20 years of technical heritage, our hydraulic machine solutions emphasize durability and continuous advancement.
Mastering Aluminum and High-Strength Alloys in Challenging Environments
GSIE machines effectively form challenging materials like aluminum and exotic alloys. Controlled expansion prevents thinning and splits, even in difficult conditions, ensuring high-quality outcomes.
Conclusion: Driving the Future of Smart Manufacturing with GSIE
Choosing internal high pressure forming and advanced hydraulic solutions from GSIE offers a strategic edge over legacy assembly methods. Our complete range—including CNC tube and pipe bending machines, tube end forming machines, and robotic lines—empowers manufacturers to meet evolving demands.
Contact the GSIE technical team today for a customized evaluation of your complex processing needs. Let us help elevate your production capabilities with proven, intelligent equipment.
