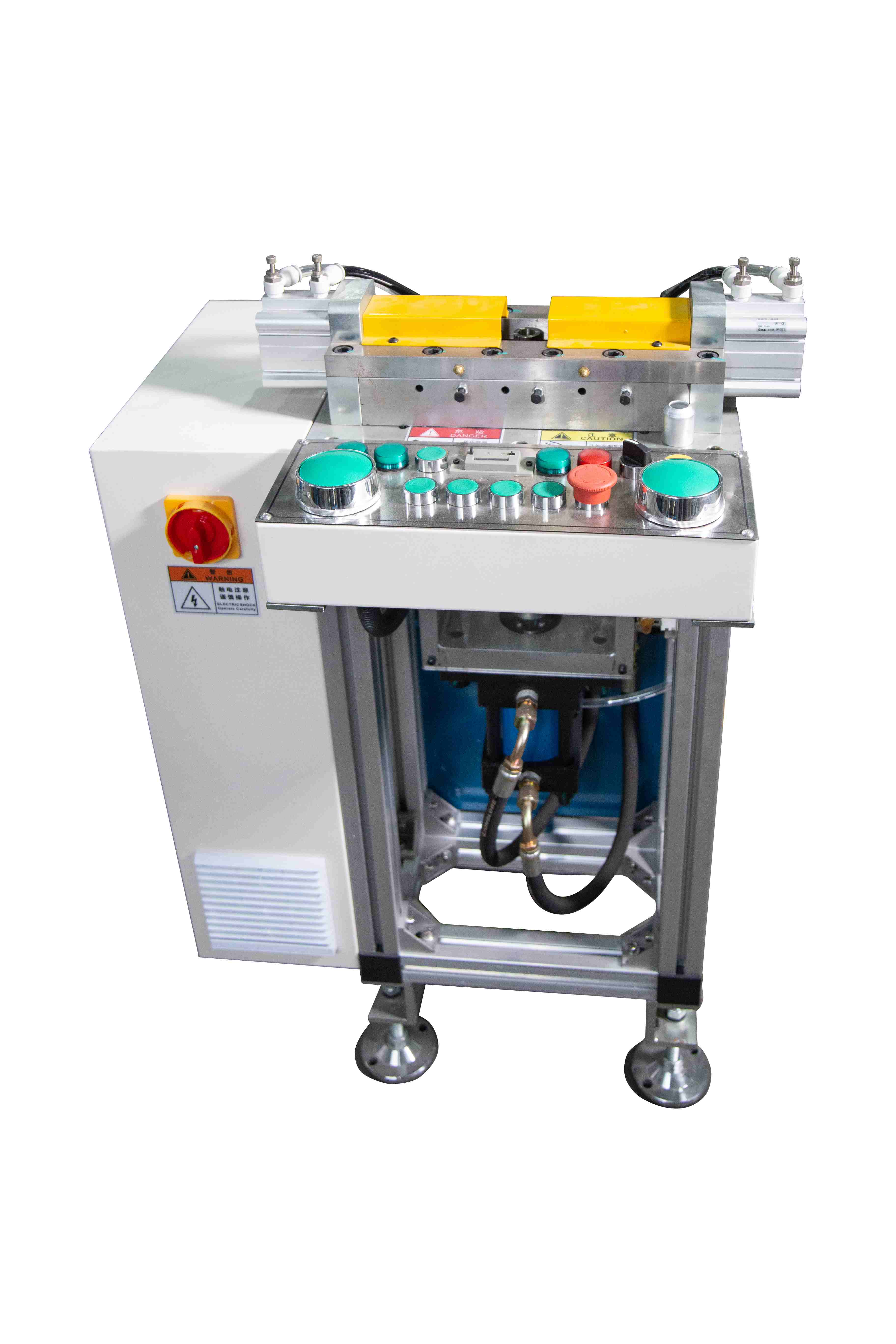

Efficient design with 5 ram station.
Double clamp die to guarantee a good-quality forming.
Meet the complex requirements of tube end forming.

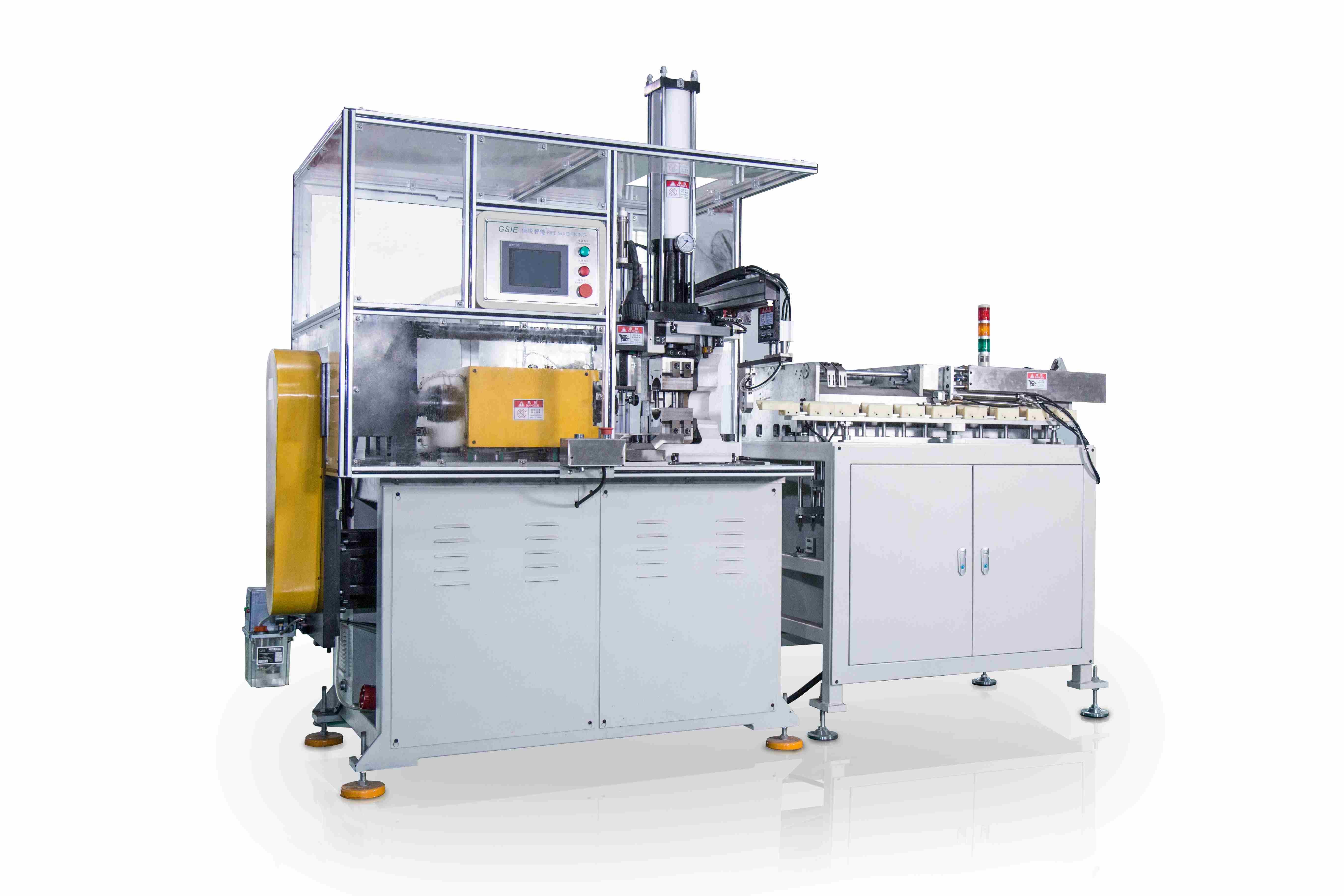

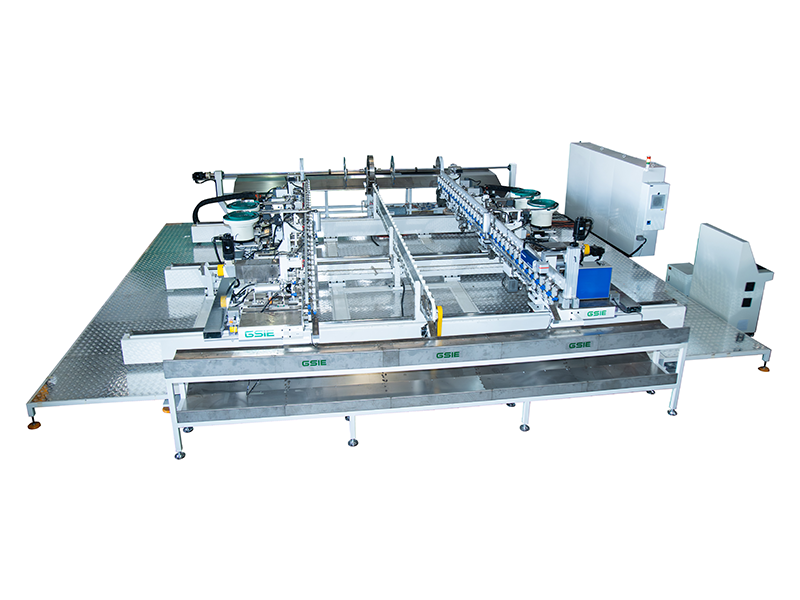

Integrated with automatic feeding and unloading system to achieve highly automatic production.

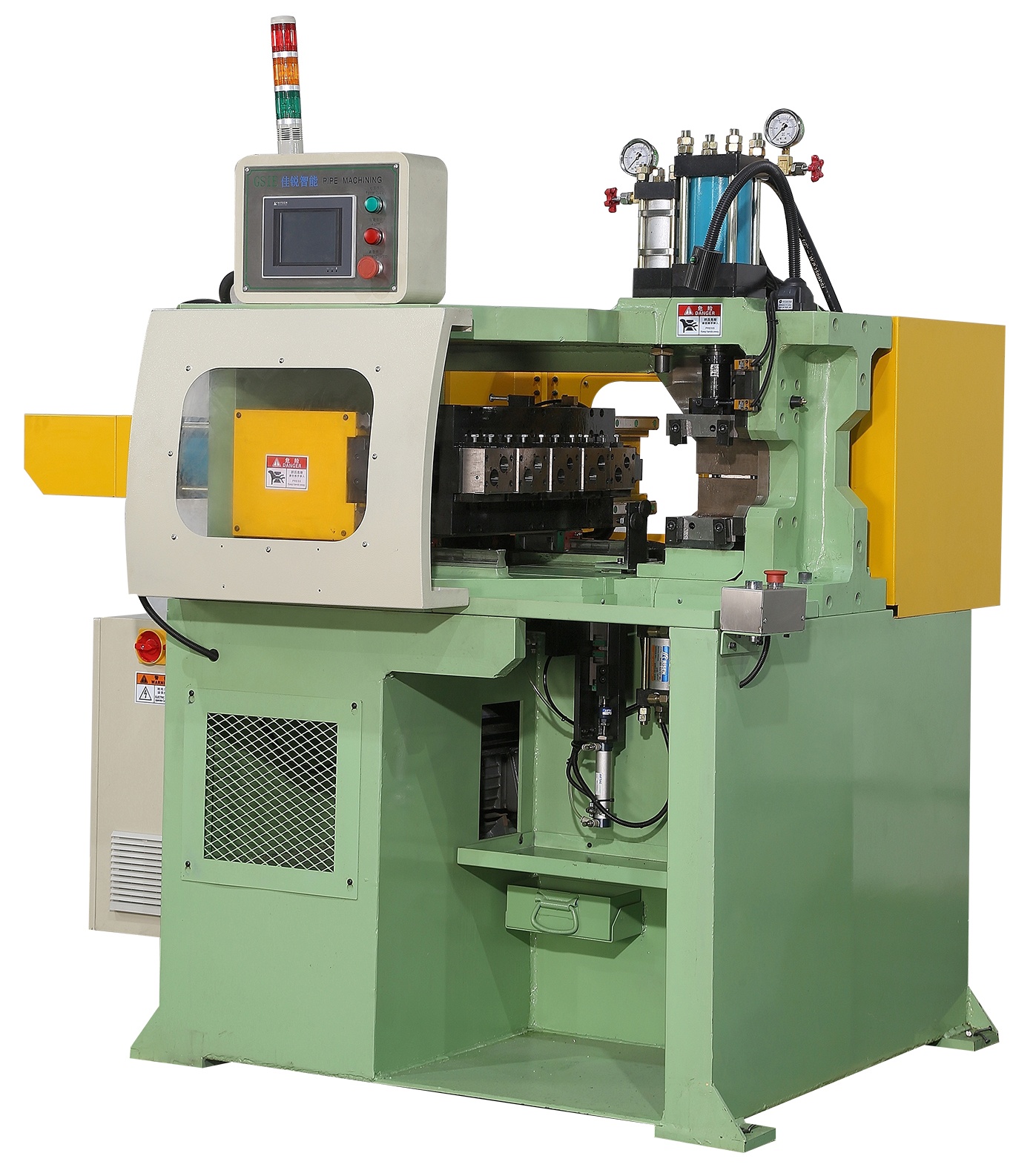

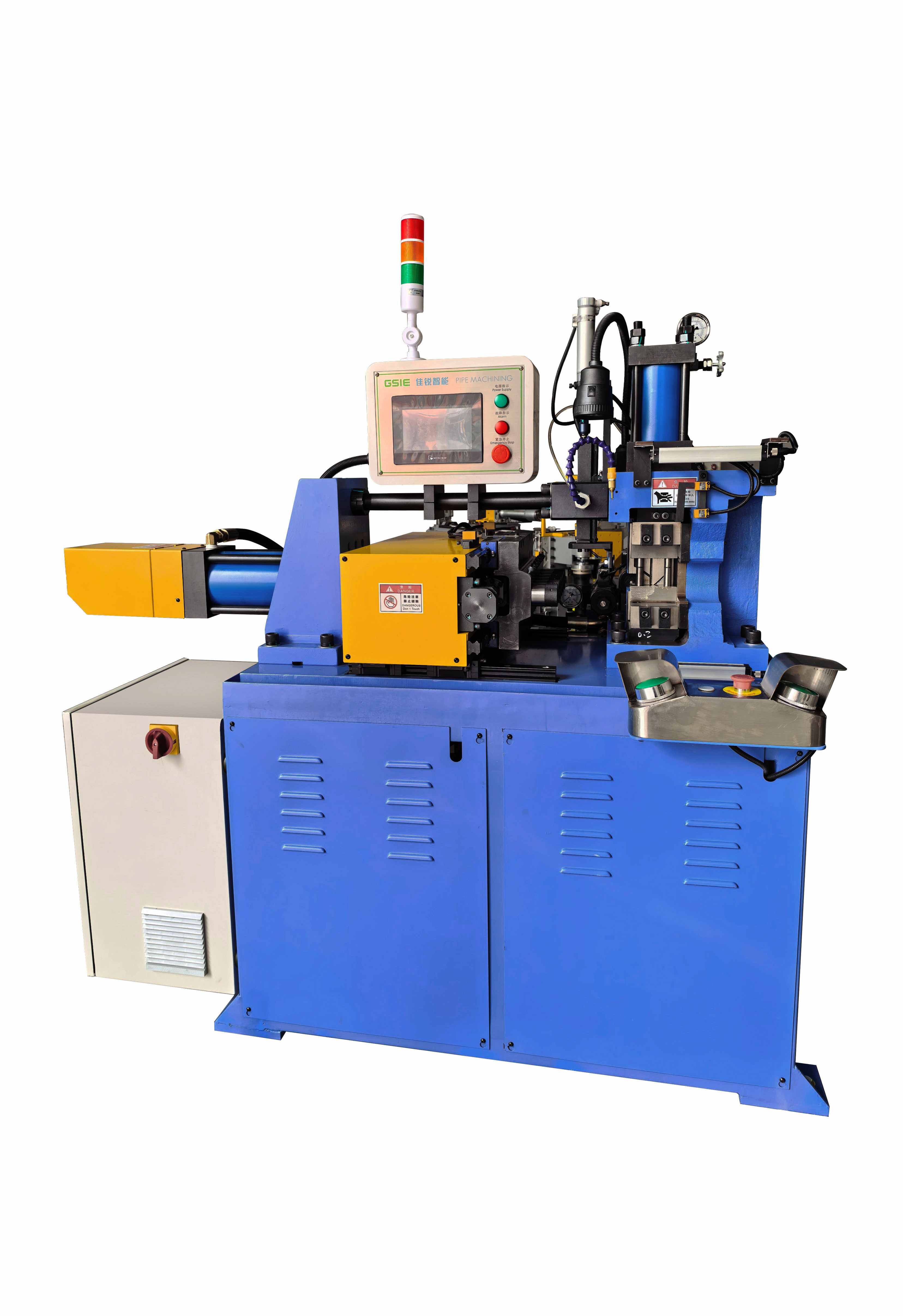

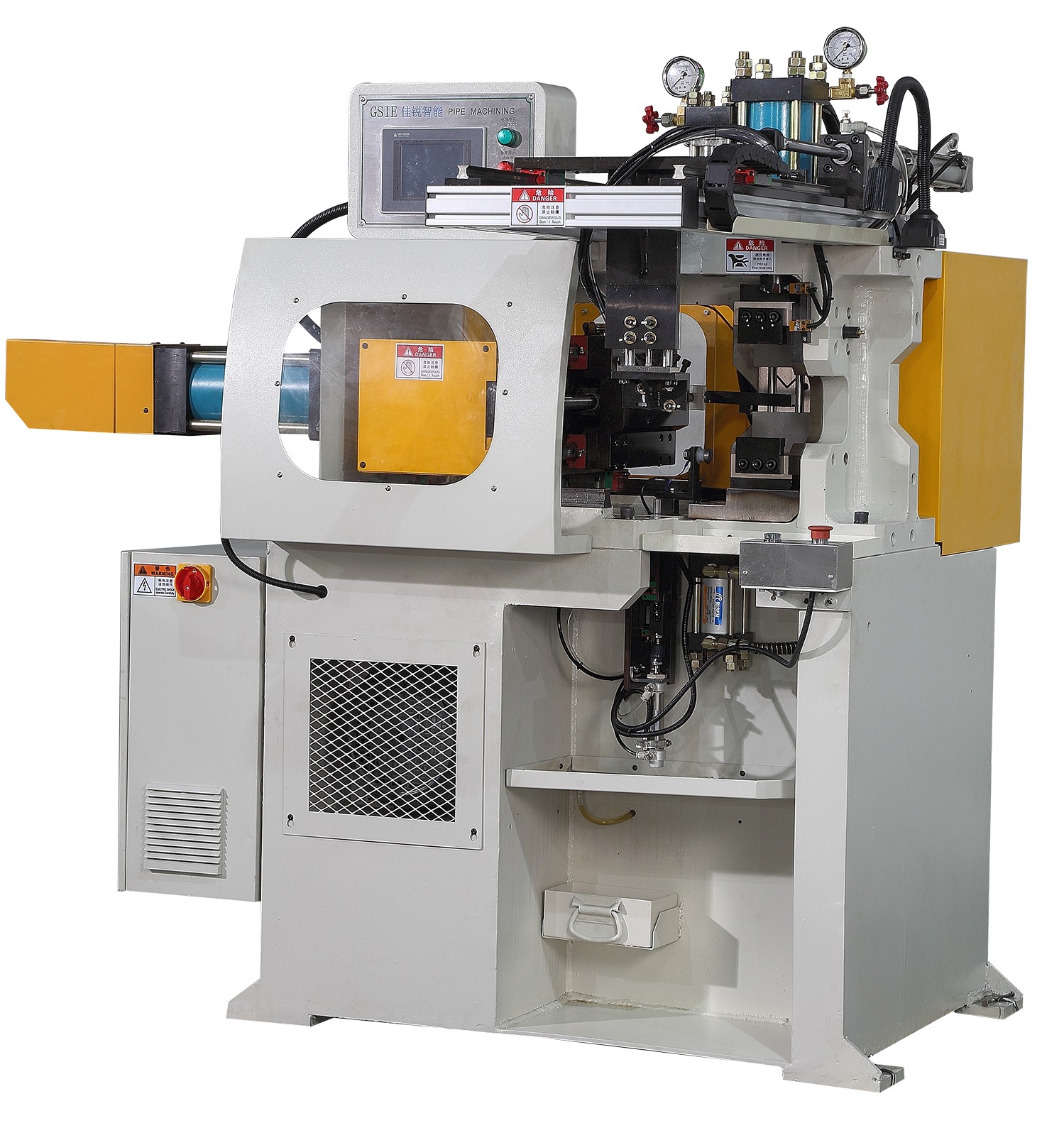

FME-D30-5P/full servo five station tube end forming machine is a tube end forming equipment driven by electric servo for both punch and clamping die. It has three operation modes: automatic, inching and manual, and can be connected with special automatic loading and unloading equipment for fully automatic operation.
This equipment is equipped with five punch stations, each of which can adjust the concentricity, independently adjusting the upper and lower shafts and the left and right shafts. The left and right are
adjusted through the touch screen, and the upper and lower shafts are adjusted mechanically. The punch speed shall reach 100mm/S and be continuously adjusted through the touch screen. The force of the punch and clamping die can be adjusted through the touch screen With continuous oil injection device and lubricating oil filtering and circulating system, the lubricating time and oil volume can be adjusted on the touch screen.

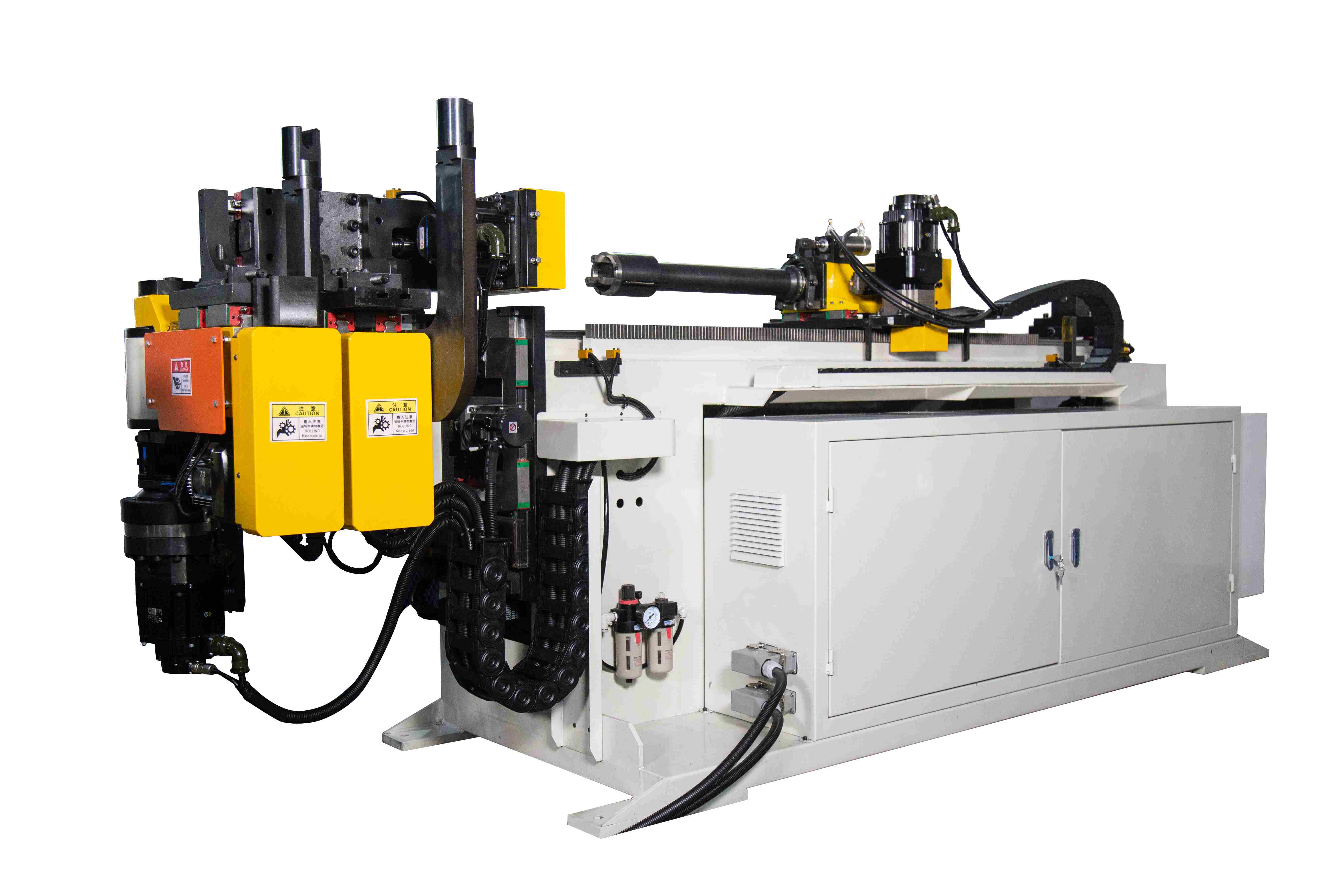

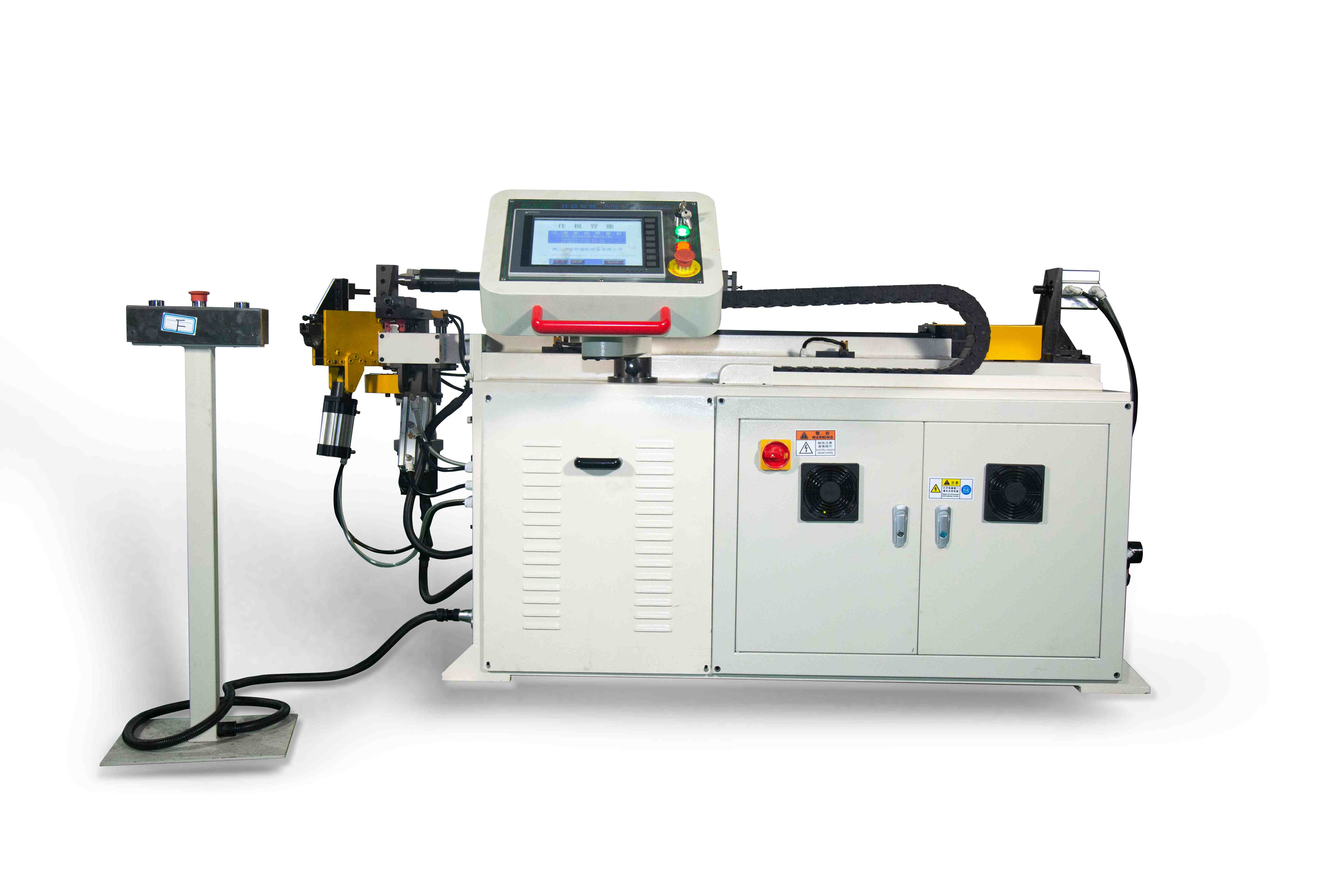

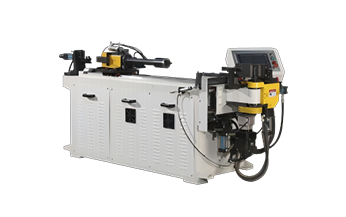

SKW-25 series CNC tube bending machine is designed for the pipe bending , especially for the pillow tube processing on car seat , bending diameter on Ø8 ~ 25, wall thickness 1.5mm for copper and aluminum tube or on Ø14mm, wall thickness 2.0mm iron tube, the clamping mechanism using hydraulic control, Y, B, C coordinate driven by servo, machine using microcomputer control. It can realize complex functions such as three-axis simultaneous movement, active and passive bending.
The machine integrates with left and right bending direction function. Two bending heads setting with parallel arrangement. Parameter setting and operation switching can be set through the Chinese or English operation interface, which is simple, convenient and reliable. With good stability, repeatability and high efficiency, it is very suitable for the bending of complex pipe fittings.
Device description: Can bend the diameter on 8 ~ 19, wall thickness 1.5mm on the copper tube, aluminum tube or 14mm, wall thickness 2.0mm iron tube.
Function features: For complex pipe to effectively avoid interference position, a pipe clamp, flexible to achieve left and right direction bending.
Longest processing: Active: 1100mm; Through type: 2000mm.
Pneumatic and electrical control, greatly improve the speed of bending.Realize active and passive tube bending.Simple operation, flexible and reliable.
Widely used in air conditioning to the automotive industry complex tube processing.
Four - six axis precision servo control: bending crankshaft, feed shaft, rotation shaft, auxiliary push shaft/lift shaft, translation shaft.
Four - six axis precision servo control: bending crankshaft, feed shaft, rotation shaft, auxiliary push shaft/lift shaft, translation shaft.
Four - six axis precision servo control: bending crankshaft, feed shaft, rotation shaft, auxiliary push shaft/lift shaft, translation shaft.
Four - six axis precision servo control: bending crankshaft, feed shaft, rotation shaft, auxiliary push shaft/lift shaft, translation shaft.
Applicable pipe:copper pipe,aluminum pipe:Features:automatic front plug function;Small R angles can be bent close to 90 degrees.
Power source selection: pneumatic, hydraulic.Three-axis - six-axis precision servo control: bending crankshaft, feeding shaft, rotation shaft/ auxiliary push shaft, lifting shaft, translation shaft.
Pneumatic and electrical control, greatly improve the speed of bending.Realize active and passive tube bending.Simple operation, flexible and reliable.Widely used in air conditioning to the automotive industry complex tube processing.
